Alert Visual Design Operators

The Visual Designer tab utilizes operators. They function to outline and define the flow of the alerts steps. The are used much like a Visual Flow application, using the drag and drop method for placement and double clicking them for the property attributes. Below is the AlertOperatorTable to display look, properties and function.

Each Alert created must begin with a Start operator and finish with an End operator.

To access the properties of the operators, double click on the operator icon once it is placed in the Visual Designer area.

Alert Visual Operator

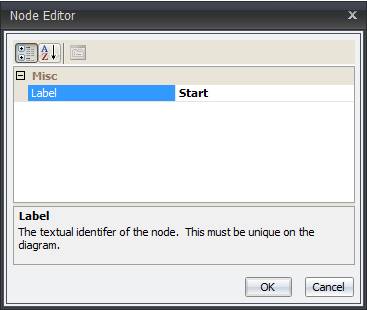

Start	Start is a mandatory for each alert or alert template created. This must be used to begin the process. The only properties available to the Start operator is the label. Label - This is used to give brief description of the node and is displayed in the Visual Designer

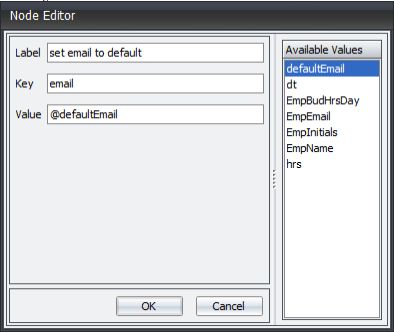

Put	Put is a variable. It has a two states. When it is incomplete (no property values) it is 'crosshatched' When it is complete, it is colored with a brown gradient. Properties include: Label - This is used to give brief description of the node and is displayed in the Visual Designer. Key - Name of the variable to be used later in the Alert. Value - The Value to be used when the variable is used.

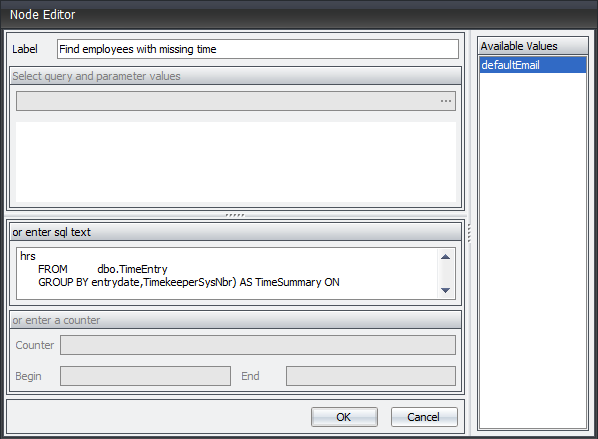

Begin Loop	BeginLoop is a Query that you can select or manually enter. It can also be used as a Counter. Properties include: Label - This is used to give brief description of the node and is displayed in the Visual Designer. Select Query and parameter values - Allows you to select from defined queries and parameters associated with the query selected. SQL Text - This feature allows you to enter SQL for a custom Query. You must know SQL syntax. Counter - This features is the “Begin or End” loop definition. It is used to define the logic to control the number times the loop runs. The Counter enables the user to input “Begin” value, “End” value and the incremental or “Counter” value. Example would be: Begin: 0 End: 10 Counter: 2 Number of times the loop runs is 5 times (2, 4, 6, 8, and 10).

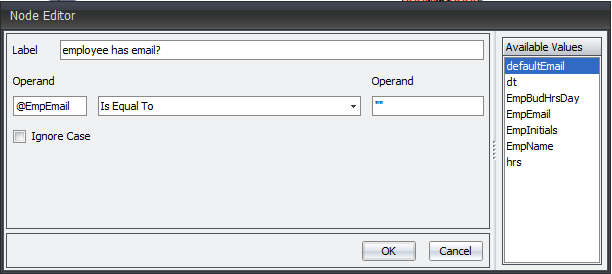

Decision	Decision provides an opportunity for an evaluation of certain criteria and an action based on the evaluation. It utilizes operands and boolean logic. Properties include: Label - This is used to give brief description of the node and is displayed in the Visual Designer. Operand - Allows you to select an available value and boolean logic function and Operand.

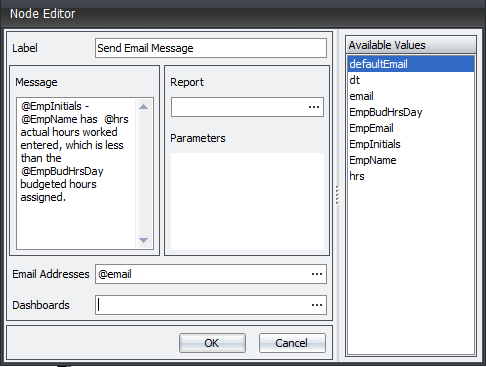

Send	Send is the function that send the alert by email or to the Dashboard. Properties include: Label - This is used to give brief description of the node and is displayed in the Visual Designer. Message - This is the message that will be sent with the alert. Information from the query may be used in the message by select fields from the Available Values. Also, any Put variables from earlier in the Alert flow will be listed under Available Values. Report - Allows you to select and attach a report. Parameters - Based on the Report selected. Email Address - Email addresses of recipients. Click the ellipses (...) button to open the Address Book. This is used mainly for emails originating from outside of Juris Suite. Dashboards - Select the Employees or Teams for whom the alert should appear on their dashboard(s). User must have access to a Dashboard with an Alert visualize.

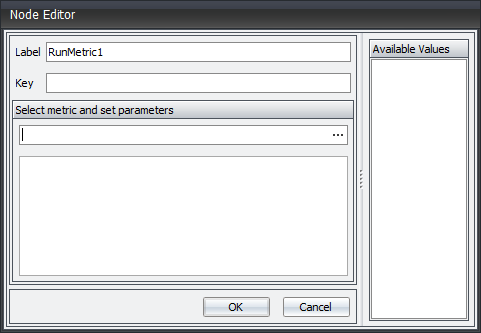

Metric	Metric is used to select the Metric which the alert can be based on. Properties include: Label - This is used to give brief description of the node and is displayed in the Visual Designer. Key - Name of the metric that will be listed under available values to be selected later in the Alert. Select Metric and set parameters - Select a metric from the available standard or custom metrics by clicking on the ellipses button. Any parameters associated with the metric will be listed and default values assigned.

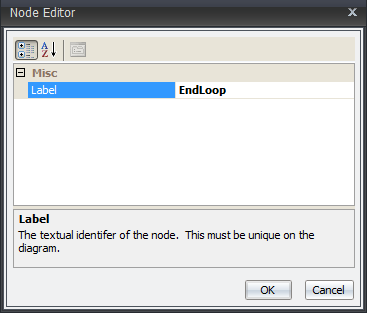

End Loop	End Loop is the simple operator that ends the Begin Loop process. It must come after BeginLoop. There is only one property. Label - This is used to give brief description of the node and is displayed in the Visual Designer.

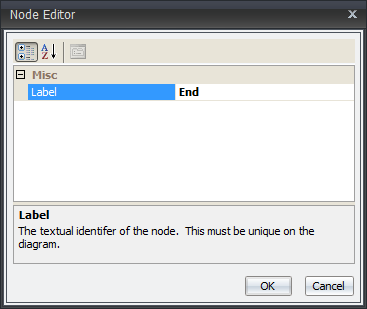

End	End is a mandatory for each alert or alert template created. This must be used to end the process. The only properties available to the Start operator is the label. Label - This is used to give brief description of the node and is displayed in the Visual Designer.
